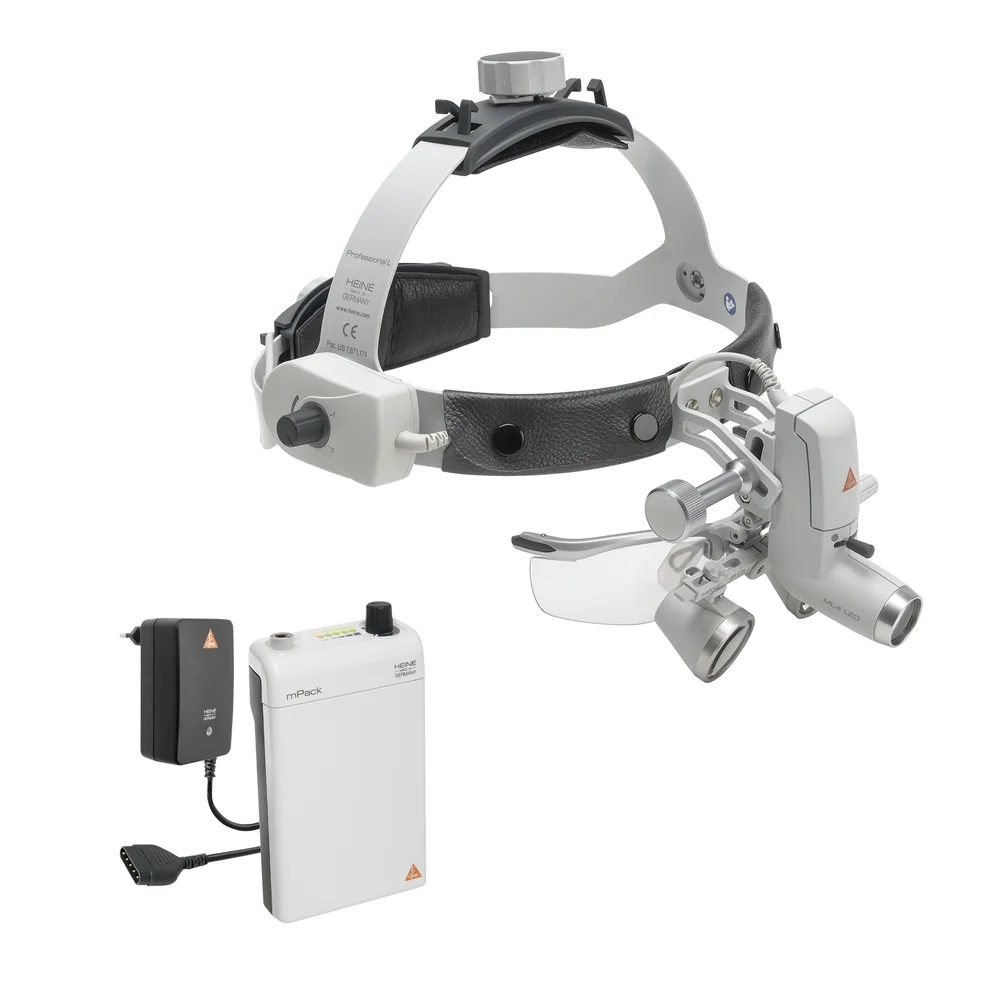

HEINE ML4 LED HeadLight Kit 1 with HR 2.5x / 340 mm

    HEINE ML4 LED HeadLight Kit 1 with HR 2.5x / 340 mm

    HEINE ML4 LED HeadLight Kit 1 with HR 2.5x / 340 mm

    Tax excluded

    The following Kit 1 contain:

    • HEINE ML4 LED HeadLight
    • HEINE HR Binocular Loupe 2.5 x / 340 mm with i-View
    • HEINE mPack and plug-in transformer
    • Case option
    ready to ship 8-11 days

    HEINE ML4 LED HeadLight Kit 1 with HR Binocular Loupe

    The ML4 LED HeadLight is optionally supplied with HR / HRP Binocular Loupes incl. i-View loupe mount and with or without S-GUARD. The binocular loupe is fully adjustable for every examiner and for every examination axis.

    HEINE S-GUARD: Rapid and simple symmetric adjustment of binocular loupes with splash protection by protective lenses.

    HEINE i-View for ML4 LED HeadLight: Provides any angle of view and flips up the optics independently of the illumination beam.

    • Comfortable and secure fit
    • Flexible Power Source Options
    • Adjustable spot size

    HEINE ML4 LED HeadLight

    Ultra bright coaxial illumination – Now with LED-HQ

    • LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: 5,500 K, Colour Rendering Index (CRI) > 90, special index for red colours (R9) > 75 on a maximum scale of 100.
    • Adjustable illumination spot size: 30 mm to 80 mm spot size range (at 420 mm working distance) to fit any examination situation.
    • Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
    • Stepless light intensity control. Optimal brightness setting prevents reflexes.
    • Flexibility. Flexible Power Source Options: 100 % mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
    • Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
    • Comfortable and secure fit. The ML 4 Professional headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
    • Optional filters. Polarisation Filter P 2 improves contrast and yellow filter reduces blue light.

    Technical Specification

    • Illumination Typ. 90,000 Lux (measured at a working distance of 180 mm from the light emission to the object)
    • Colour Temperature Typ. 5,500 Kelvin
    • LED Operating Life Typ. 50,000 hours
    • Spot Adjustment 30 mm to 80 mm at 420 mm working distance
    • Angle of Declination Stepless and individually adjustable for every examination
    • Rheostat Headband-mounted
    • Operating Time Typ. 8.5 hours with mPack and typ. 3.5 hours with mPack UNPLUGGED of continuous ON time at full power


    • Achromatic optics for crisp, bright images with colour-correction.
    • Lightweight (51 g).
    • Water-resistant.
    • Independent adjustment of left and right optics for perfect PD adjustment.
    • High magnification with a large field of view and excellent depth of field.
    • i-View loupe mount provides any angle of view and flips up the optics independently of the optional LED LoupeLight.


    Data sheet

    Power Sources
    mPack and plug-in transformer
    Illumination light/power
    90 000 lux
    Working distance
    340 mm
    Mounting options
    Professional L Headband
    Field of view
    90 mm
    Depth of field
    110 mm
    5 years
