HEINE LED LoupeLight 2 Set with binocular loupes HRP 4x

HEINE LED LoupeLight 2 Set with binocular loupes HRP 4x

HEINE
C-008.32.454M

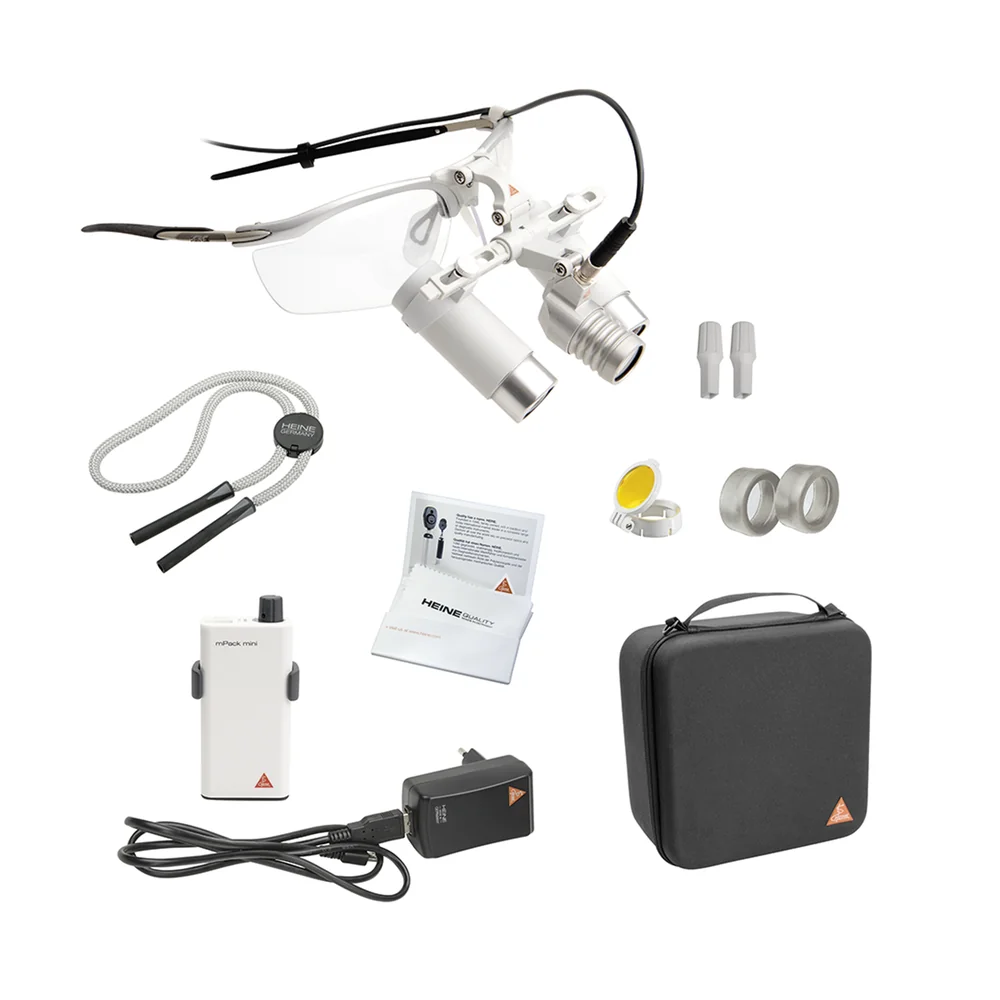

Set complete with:

  • HEINE HRP 4x binocular loupes with i-View on S-FRAME, working distance 340 mm
  • HEINE LoupeLight 2 LED
  • Detachable Yellow Filter
  • mPack mini
  • mPack mini Belt Clip
  • E4-USB plug-in transformer
  • Protective lenses
  • 2 sterilisable levers
  • Retaining cord
  • Cleaning cloth
  • Carrying case
Hurry! only 8 items left in stock.
€2,853.00
Tax excluded
Quantity

HEINE LED LoupeLight2 with binocular loupes HRP 4x, i-View mount

  • LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: typ. 4,000 K, Colour Rendering Index (CRI) > 90, special index for red colours (R9) > 75.
  • Compact, lightweight (50 g). Ensures perfect comfort.
  • Aluminium Housing. Exclusive aluminium housing protects the optics against dust and moisture to ensure an extraordinary long lifespan and optimal thermal management.
  • Coaxial Illumination: Compact coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
  • Optional Filter. Polarisation filter P 2 improves contrast and yellow filter reduces blue light.
  • NEW: Connecting cord SC 1. Replaceable connecting cord with high-quality splashproof threaded connector with a length of 1.6 m. Connects the LoupeLight 2 with the mPack mini.
  • NEW: Incl. coloured attachment clips for personalisation. To fixate the cable and to identify your LoupeLight.

Technical Specification

  • Illumination 55 000 Lux
  • Colour Temperature 4 000 Kelvin
  • LED Operating Life 50 000 hours
  • Spot Size The illuminated field is designed to complement the HR/HRP loupes. 81 mm dia. at 420 mm, 95 mm dia. at 520 mm working distance
  • Angle of Declination Stepless and individually adjustable for every examination
  • Operating Time 9 h with mPack mini

How to choose the correct Loupe

HEINE® HRP 4X HIGH RESOLUTION PRISMATIC BINOCULAR LOUPES

  • HRP Optics with i-View Achromatic optics for crisp
  • bright images from edge-to-edge
  • Lightweight (85 g)
  • Water-resistant
  • Independent adjustment of left and right optics for perfect PD adjustment

Highest magnification: Choice of 3.5x, 4x and 6x. i-View loupe mount provides any angle of view and flips up the optics independently of the optional LED LoupeLight 2.

HEINE S-FRAME®

  • Maximum comfort with a modern, ergonomic design.
  • Malleable temples and nose pad can be customized to fit any face perfectly.
  • Innovative materials – Carbon-Kynetium reduces weight (24 g).
  • Tough polycarbonate protective lenses.
  • Optional clip-in correction frame for prescription lenses.

HEINE P2 POLARISATION FILTER SYSTEM

In many diagnostic situations, glare and reflections can be an unwanted byproduct of additional illumination. Our engineers have developed a simple but amazingly effective new solution for minimising this problem –  a polarisation filter system for our Lighting and Magnifying Loupe combinations, giving you even better views and more detail than before.

The new polarisation filter system is available in combination with the following magnification / illumination combinations:

  • ML4 LED HeadLight with HR Binocular Loupes
  • LED LoupeLight with HR Binocular Loupes

The P2 Polarisation filter is a high-performance polarisation system that consists of a filter for the illumination source, as well as 2 filters for your HEINE Binocular Loupes:

2 Filters for Loupes + 1 Filter for illumination source

Applications

Polarisation filters are used in many optical applications to absorb certain wave lengths of light. The effect of this absorption is a dramatic reduction of glare, the suppression of oblique reflections, and enhanced contrast of images.

The benefits of polarisation can be best seen when taking photographs of reflective surfaces (e.g. water, glass, skin, and metal) with and without polarisation filters – please see pictures on the right.

Polarisation filters used

Dermatology / Cosmetic

The HEINE P2 supports Dermatologic procedures such as: hair follicle examination, spider veins, psoriatic pits (Nails), and excision of skin cancer.

In all applications, contrast is improved and reflections minimized. The polarisation filter can also help to accentuate the appearance of inflammation in Acne and sun damage.

HEINE P2 Polarisation Filter

Dental

The HEINE P2 Polarisation Filter helps to reduce reflections in the mouth for bright, high contrast, and glare free views.

HEINE P2 Polarisation Filter

Sclerotherapy / Cosmetic:

The HEINE P2 allows direct subsurface visualisation through the superficial skin layers for better visualisation of veins.

HEINE P2 Polarisation Filter

Minor Procedures:

The HEINE P2 Polarisation Filter helps to eliminate the surface glare of skin and enhances contrast for better visualization.

Surgical Procedures:

The HEINE P2 Polarisation Filter helps to eliminate reflections, allowing user‘s to accurately assess tissue appearance and condition.

: C-008.32.454M
: 8 Items
Hurry! only 8 items left in stock.

Data sheet

Illumination
6V LED
Power Sources
mPack mini with E4-USB plug-in transformer
Colour Temperature
4000 Kelvin
Illumination light/power
55 000 Lux
Magnification
4.0x
Working distance
340 mm
Mounting options
S-FRAME
Field of view
50 mm
Depth of field
40 mm
Warranty
5 years
