[ 01 ] Flat, elliptical illumination beam produced by HEINE’s patented Aspherical Optical System.

[ 02 ] Observation path.

[ 03 ] Redirected iris and corneal reflexes.

[ 04 ] The elliptical light beam enters through the lower half of the cornea. The illumination beam has been separated from the observation beam (Gullstrand-Principle). All reflexes are diverted away from the observation beam due to the curvature of the reflective cornea. Due to the flat, compressed form of the light beam, a maximum amount of light enters through the pupil.

[ 05 ] Once past the anterior chamber, the light beam opens up dramatically to illuminate a large area of the retina.

DURABILITY

HEINE offers a 5 year guarantee

HEINE makes no compromises in manufacturing high quality medical instruments. Our commitment to vertical integration in manufacturing means we control all aspects of our instrument quality, from utilising carefully selected, well-matched materials to a high level of hand assembly. This ensures that each HEINE instrument meets or exceeds all requirements in any medical environment.

LED with virtually unlimited hours of working life. No need to ever replace bulbs. Maintenance-free for a lifetime.

Exclusive dustproof design protects the precision optical components and ensures maintenance-free operation.

The only instrument with an aluminium frame system. Optical components are flush-mounted on a cast aluminum frame, eliminating misalignment and making the instrument shock-resistant.

PERFORMANCE

LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: 3 500 K, Colour Rendering Index (CRI) > 97, special index for red colours (R9) > 93 on a maximum scale of 100.

Special optical interface to precisely integrate the LED illumination with the optical system to ensure bright, homogeneous light during examinations.

Exclusive continuous brightness control between 100 % and 3 % (patent pending) with one-finger operation.

No stray light due to the recessed, multi-coated viewing window – for a safer diagnosis.

Exclusive aspherical optical system (AOS) redirects corneal reflections away from the examiner‘s path of sight providing a crisp, clear view of the fundus. Eliminates the need for filters and other systems that reduce resolution.

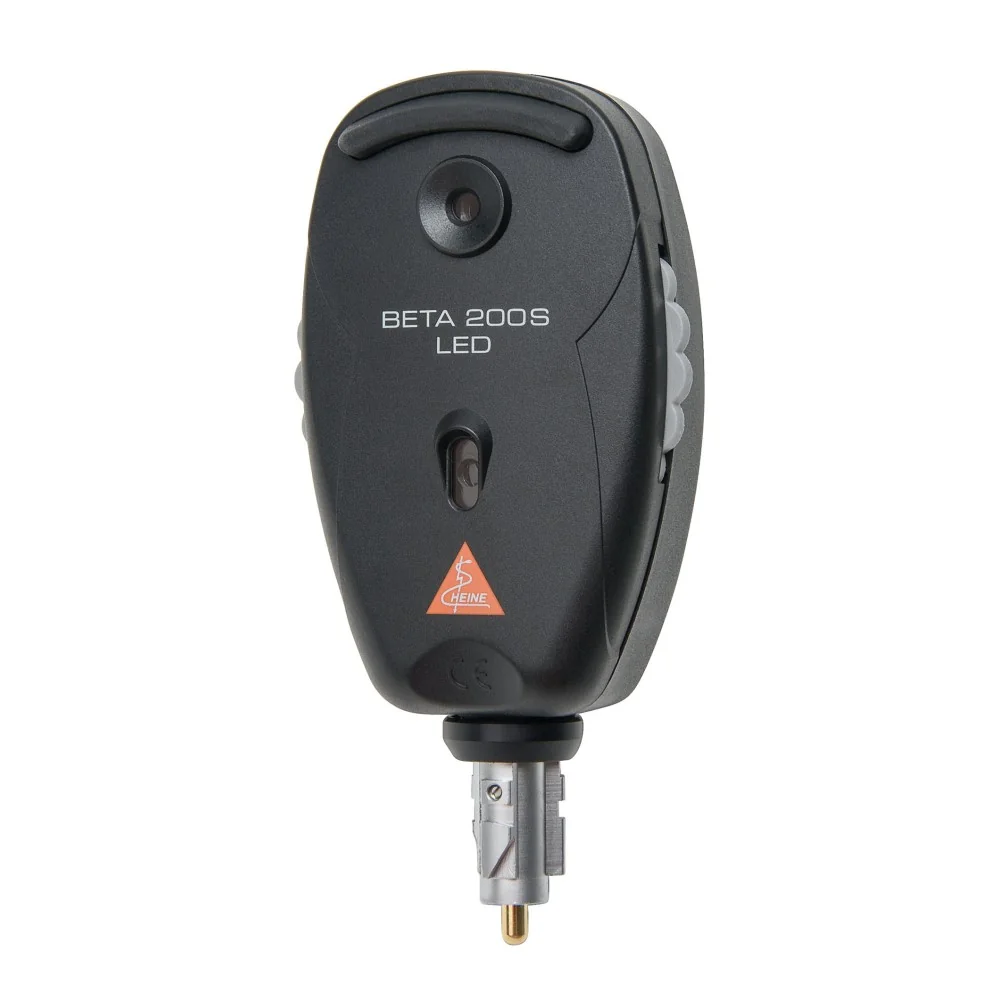

The BETA 200 Ophthalmoscope accommodates higher refractive errors with a 27 single lenses Rekoss disc.

The BETA 200 S Ophthalmoscope accommodates higher refractive errors with a 28 single lenses Rekoss disc and features a 74 single step design on a non-continuous wheel avoiding extreme diopter jumps.

FUNCTION

Suitable for large as well as small or undilated pupils.

Ergonomic design fits the orbita comfortably and blocks out ambient light.

Precise one-hand control of the instrument. Ergonomic design offers flexibility while examining.
