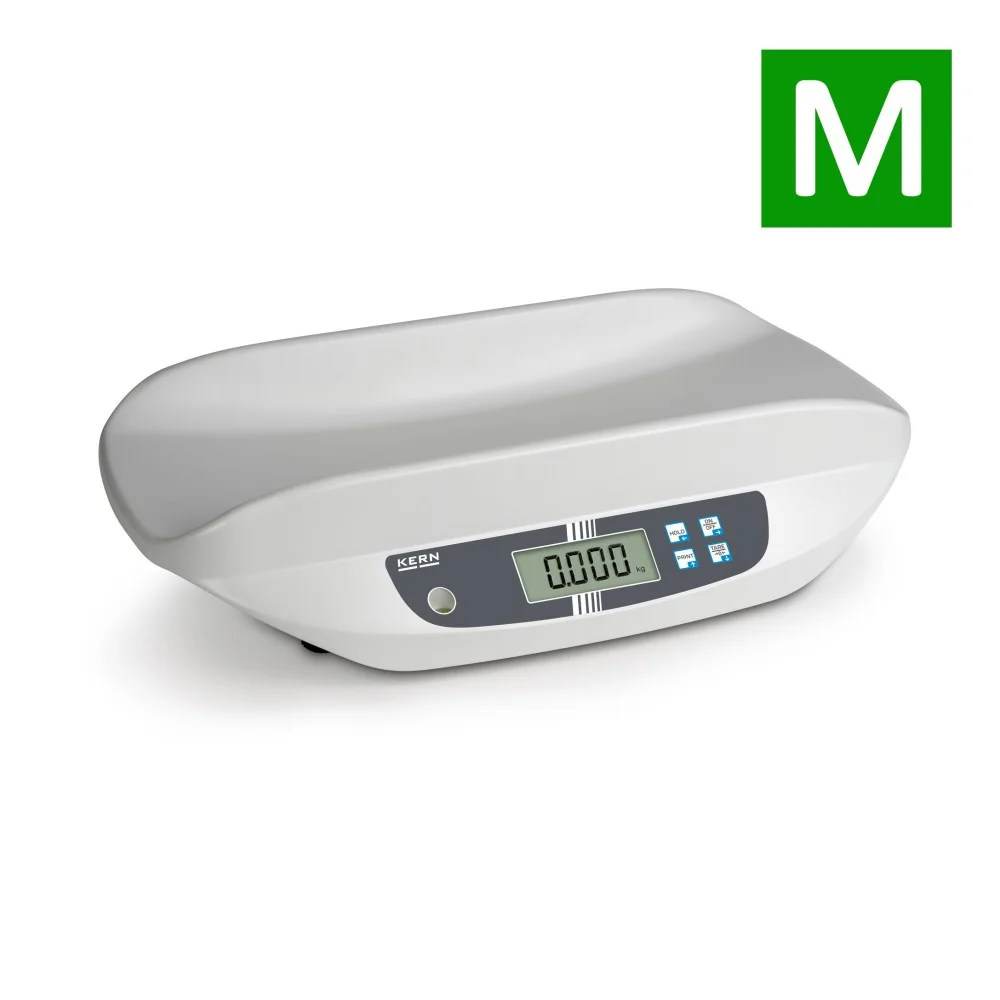

Compact baby scale with special Safe Guard tray with EC type approval class III and approval for professional mobile or stationary medical use in medical diagnostics
Removable tray enables use as a scale for small children as well
Robust ABS plastic
Secure and non-slip positioning with rubber feet
Dynamic weighing function to determine a stable weighing result, ideal for restless babies
Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
Battery- or mains-powered
Wall mount for display device standard
FEATURES
Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight require
KERN Communication Protocol (KCP)
Battery operation: The battery type is specified for each device.
Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
TARE Function
Mains adapter: 230V/50Hz in standard version for Germany. On request GB or USA version.
Medical verification class III
Technical data
LCD display, digit height 25 mm
Dimensions of tray W×D 600×260 mm
Overall dimensions W×D×H 600×360×141 mm
Batteries included, 6×1,5 V AA, operating time up to 20 h
Net weight approx. 4 kg
Measuring system
Adjustment options: External calibration
Linearisation (points): 5
Linearity: 5 g
Load cell connection: 4-wire
Number of weighing ranges: 1
Readability [d]: 5 g
Recommended adjusting weight: 15 kg (M1)
Repeatability: 5 g
Resolution: 3000
Stabilisation time under laboratory conditions: 3 s
